DA-G2.PRO MOST150 Coaxial Mercedes Preamp & DSP

DA-G2.PRO MOST150 Coaxial Mercedes Preamp & DSP

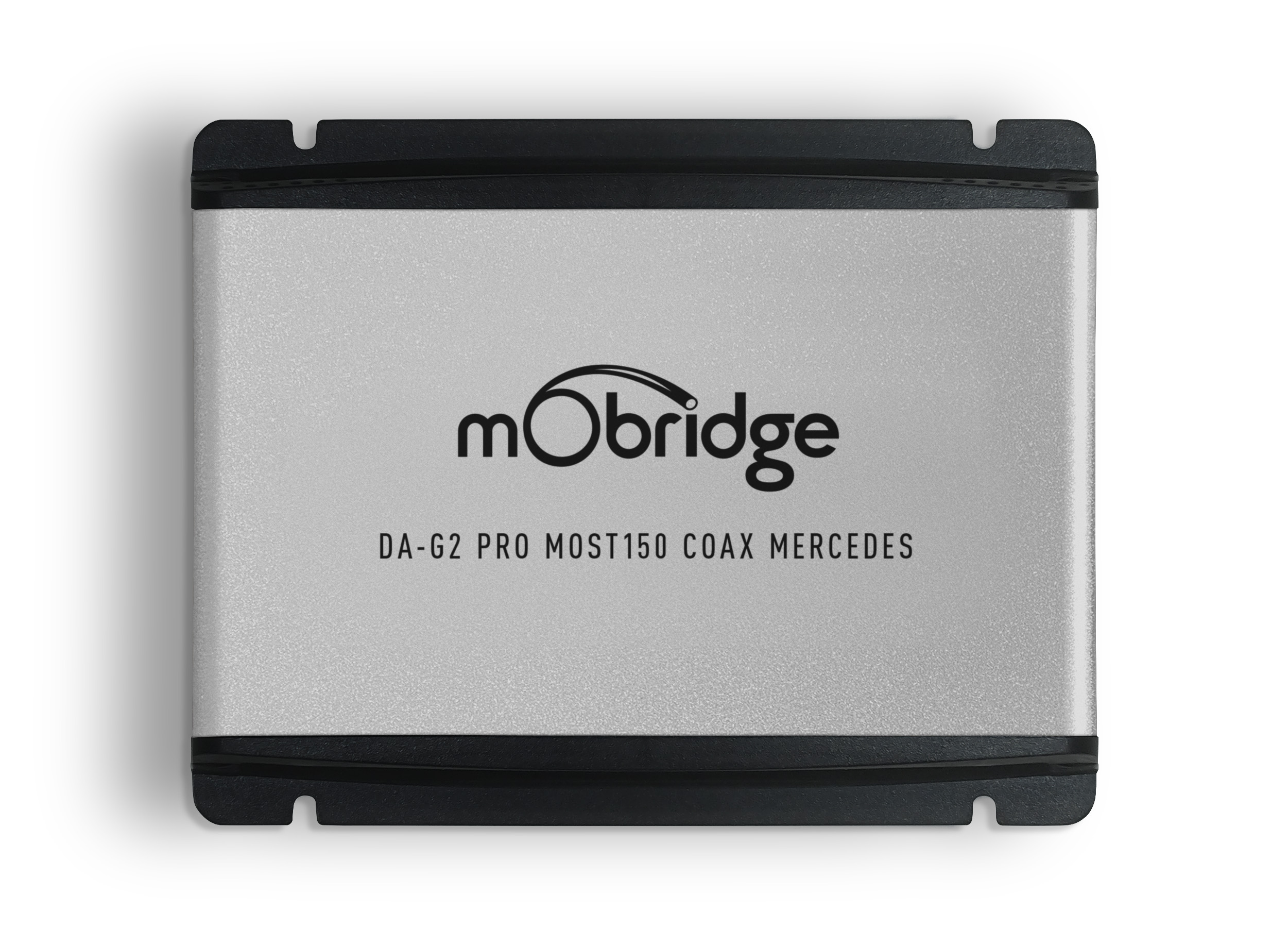

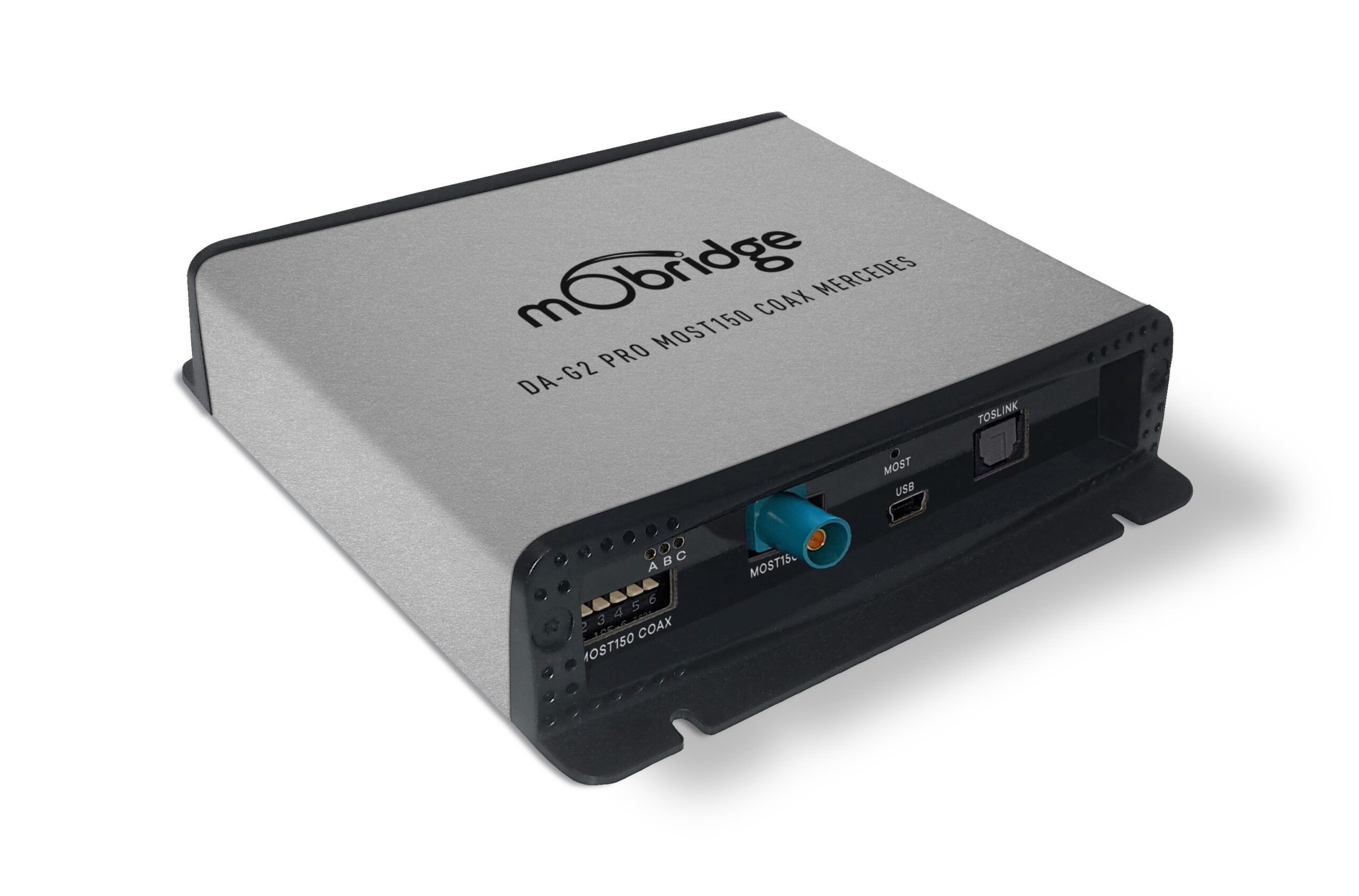

The mObridge DA-G2.Pro MOST150 pre-amplifier & DSP combo provides a connection between the in-vehicle MOST150 infotainment system with any aftermarket analog/digital amplifier.

It provides 10 channels of RCA analog outputs, a TOSLINK output, and an amplifier turn on/off control. Multi-vehicle compatibility is provided via DIP switches, and a USB connection can be used to connect it to the mObridge DSP user interface for configuration and firmware updates.

The DA-G2.Pro MOST150 also allows adjustment of the mono sinks such as Phone, Navigation, PDC and Voice recognition to compensate for OEM systems that may need adjustment. The DA-G2.Pro also allows the mono sink channels to bypass the time buffering to avoid delays and issues such as echo cancellation and delayed reverse park beeps. The DA-G2.Pro is the most advanced OEM DSP available for these vehicles.

The DA-G2.Pro MOST150 is a complete DSP solution, with advanced DSP algorithms. If only basic analog + TOSLINK outputs are required, the DA-G2.Standard MOST150 coax can be used. Where only basic TOSLINK outputs are required, the DA-G2.Entry MOST150 coax can be used.


The DA-G2.Pro MOST150 Coaxial has been specifically designed for MOST150 Coax systems to interface seamlessly into the vehicle bus network for unprecedented control and audio reproduction.

Blackfin DSP

The heart of the device is a 533MHz Blackfin Digital Signal Processor (DSP). With it, the DA-G2.Pro MOST150 Coax is capable of concurrently running advanced DSP algorithms on up to 12 channels. It provides full access to channel mapping, channel summing, parametric crossovers, a 1024 point graphic equalizer, channel high/low/band-pass filters, phase inversion, time alignment, master/channel gain control, center channel upmixing algorithms, in-vehicle preset control, and many other features.


The pre-amp stage is driven by a Burr Brown DAC converter, providing an audiophile quality without compromise.

Seamless Integration

The DA-G2.Pro MOST150 Coax interfaces seamlessly with the controls of the vehicle. Volume, fade, balance, bass, and treble remain completely controllable via the existing vehicle controls, and all factory audio such as parking sensors, navigation, voice, and telephone are integrated to behave exactly as per the original system. This means that unlike other integration options, there is no need for mounting of any additional controls inside the vehicle. The vehicle will look and feel stock, with exceptional audio quality.

mObridge DSP User Interface

The DA-G2.Pro MOST150 Coax utilizes the mObridge DSP desktop application for Windows/macOS to harness the full potential of the DSP. The application is also able to provide automatic online firmware updates.

Additional information

Product Type



Analog Outputs

  • 10 channels RCA full-range
  • 4V RMS
  • 192kHz Sampling 24-bit digital to analog converter (DAC)

Digital TOSLINK Output

  • Stereo TOSLINK output

Vehicle Interface

  • Support for volume/fade/balance on factory radio and/or steering wheel
  • Support for all factory-fitted audio sources (eg telephone/navigation/voice recognition/television/dvd) (where applicable)
  • Support for reverse park sensor audio overlay (where applicable)
  • Support for factory multi-band equalizer (where applicable)
  • Wiring harness
  • 8x RCA plug adapter
  • DA-G2 MOST150 coax Mercedes instructions


Model Generation Configuration Year
A Class Small Car (W177/V177/Z177) NTG6.x MBUX 2018 – 2023
B Class Small Car (W247) NTG6.x MBUX 2019 – 2023
C Class Small Car (W206) NTG6.x MBUX 2021 – 2023
CLA Class Sports Coupe (C118) NTG6.x MBUX 2019 – 2023
CLC Class Compact SUV (X254) NTG6.x MBUX 2022 – 2023
CLS Class Sports Coupe (C257) NTG6.x MBUX 2018 – 2023
E Class E Class (W213/C238/A238/S213) NTG6.x MBUX 2020 – 2023
GLA Class SUV (H247) NTG6.x MBUX 2020 – 2023
GLB Class SUV (X247) NTG6.x MBUX 2019 – 2023
GLE Class SUV (W167) NTG6.x MBUX 2019 – 2023
GLS Class SUV (X166) NTG6.x MBUX 2020 – 2023
S Class Saloon (W223) NTG7.x MBUX 2020 – 2023
SL Class Coupe/Convertible (R232) NTG7.x MBUX 2022 – 2023
