DA-G2.Standard MOST150 Optical VAG Pre-Amp

DA-G2.Standard MOST150 Optical VAG Pre-Amp

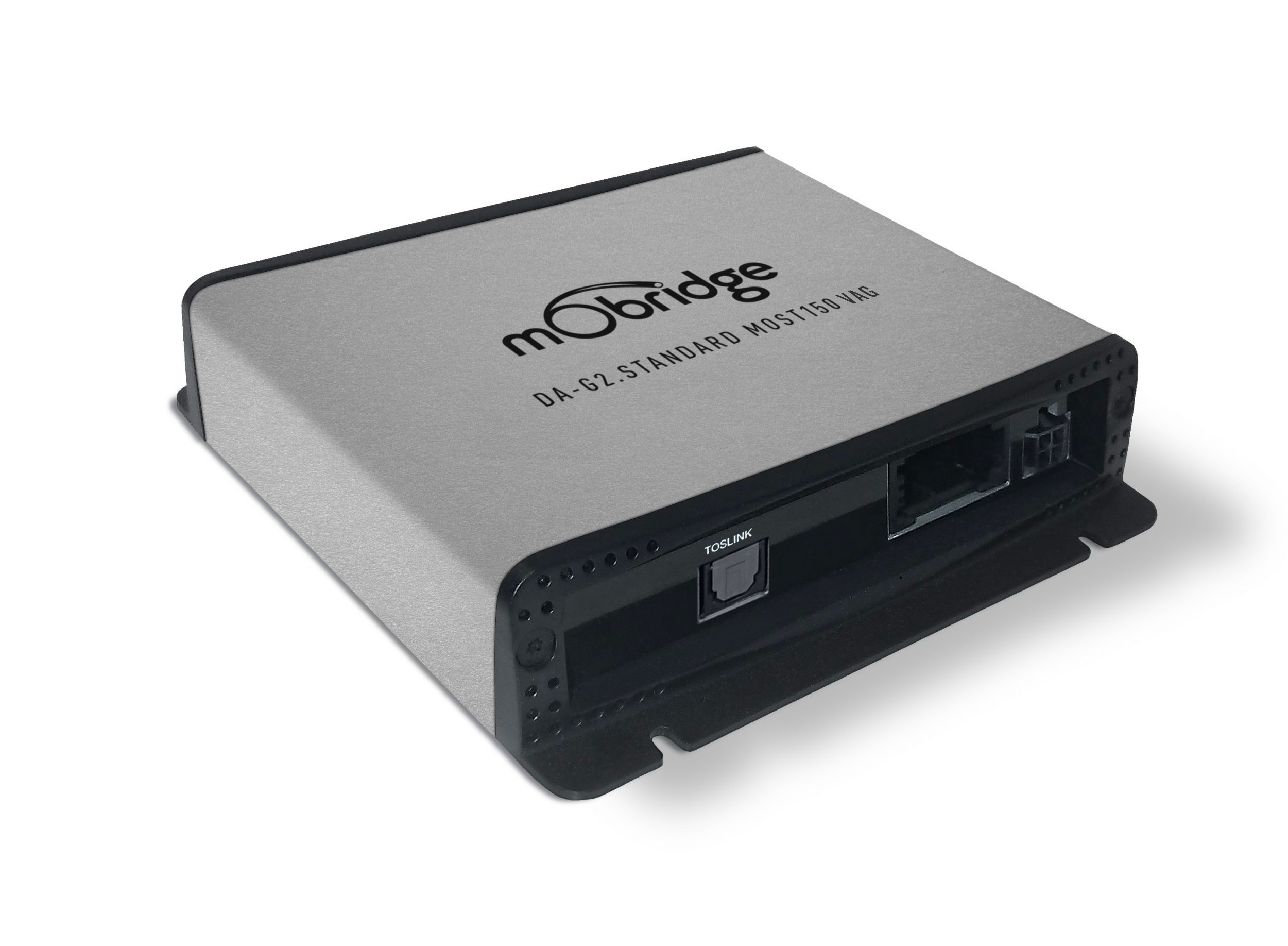

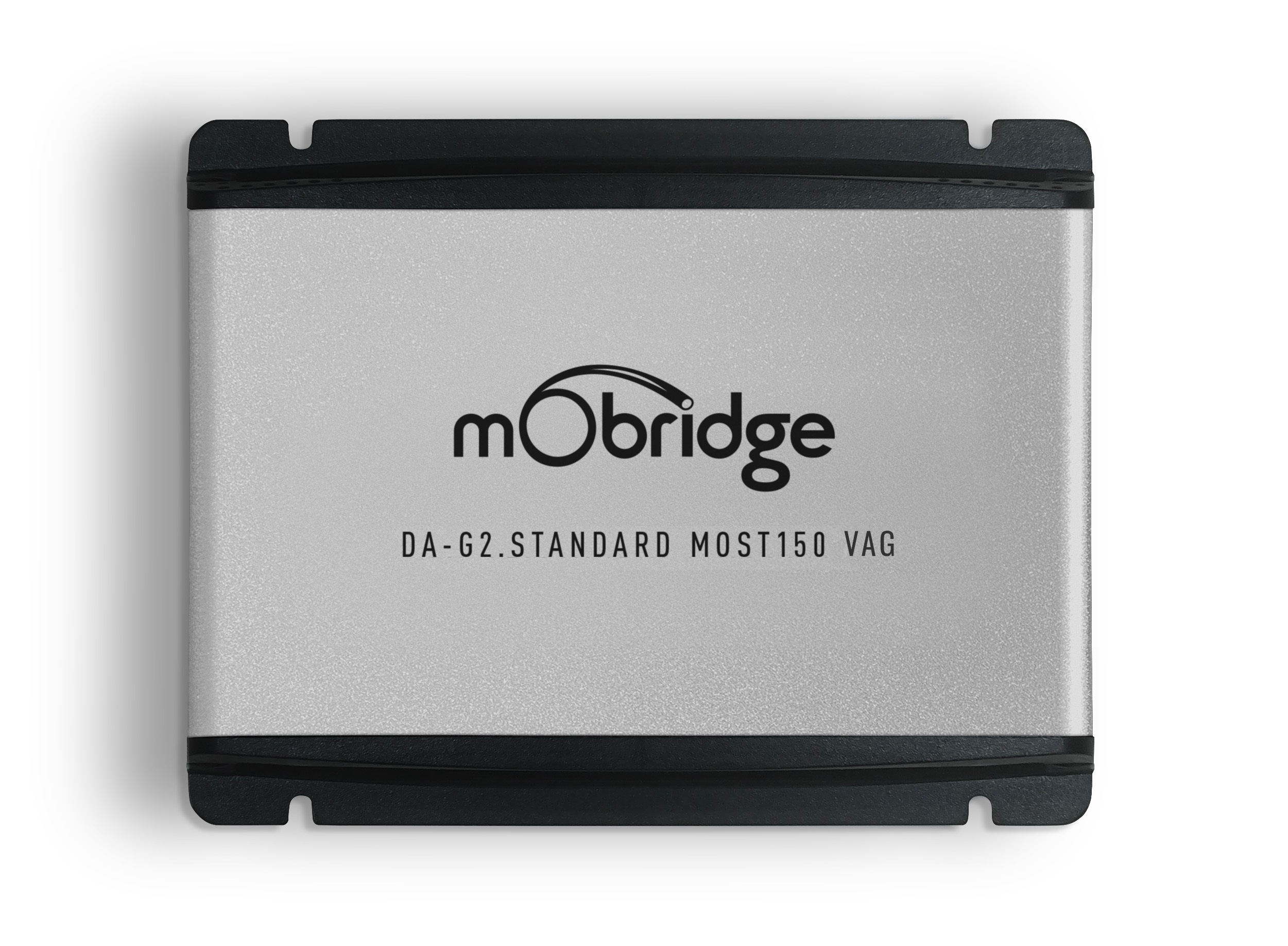

The mObridge DA-G2.Standard MOST150 pre-amplifier provides a connection between the in-vehicle MOST150 infotainment system with any aftermarket analog/digital DSP/amplifier.

It provides 6 channels of RCA analog outputs, a TOSLINK output, and an amplifier turn on/off control. Multi-vehicle compatibility is provided via DIP switches, and a USB connection can be used for updates.

The DA-G2.Standard MOST150 also allows adjustment of the mono sinks such as Phone, Navigation, PDC and Voice recognition to compensate for OEM systems that may need adjustment. The DA-G2.Standard also allows the mono sink channels to bypass the time buffering to avoid delays and issues such as echo cancellation and delayed reverse park beeps.

Description

The DA-G2.Standard MOST150 Optical has been specifically designed for late model VAG (VW Audi Group), vehicles to interface seamlessly into the vehicle bus network for unprecedented control and audio reproduction.

Burr-Brown

The pre-amp stage is driven by a Burr Brown DAC converter, providing an audiophile quality without compromise.

Seamless Integration

The DA-G2.Standard MOST150 Optical interfaces seamlessly with the controls of the vehicle. Volume, fade, balance, bass, and treble remain completely controllable via the existing vehicle controls, and all factory audio such as parking sensors, navigation, voice, and telephone are integrated to behave exactly as per the original system. This means that unlike other integration options, there is no need for mounting of any additional controls inside the vehicle. The vehicle will look and feel stock, with exceptional audio quality.

Analog Outputs

  • 6 channels RCA full-range
  • 4V RMS
  • 192kHz Sampling 24-bit digital to analog converter (DAC)

Digital TOSLINK Output

  • Stereo TOSLINK output

Vehicle Interface

  • Support for volume/fade/balance on factory radio and/or steering wheel
  • Support for all factory-fitted audio sources (eg telephone/navigation/voice recognition/television/dvd) (where applicable)
  • Support for reverse park sensor audio overlay (where applicable)
  • Support for factory multi-band equalizer (where applicable)
  • MOST ‘T’ piece harness
  • Wiring harness
  • 6x RCA plug adapter
  • DA-G2.Standard MOST150 instructions

Audi

Model Generation Configuration Year
A3/S3        8Y 8V AUDI MIB MIB HS MIB2 MIB3 MIB3+ 2015 – 2024
A4/S4 B9 AUDI MIB MIB HS MIB2 MIB3 MIB3+ 2017 – 2024
A5/S5 8W6 AUDI MIB MIB HS MIB2 MIB3 MIB3+ 2017 – 2024
A6/S6 C8 AUDI MIB MIB HS MIB2 MIB3 MIB3+ 2017 – 2024
A7/S7 4K8 AUDI MIB MIB HS MIB2 MIB3 MIB3+ 2017 – 2024
A8/S8 D4 D5 AUDI MIB MIB HS MIB2 MIB3 MIB3+ 2017 – 2024
Q3 8U F3 AUDI MIB MIB HS MIB2 MIB3 MIB3+ 2015 – 2020
Q5 80A AUDI MIB MIB HS MIB2 MIB3 MIB3+ 2015 – 2020
Q7 4M AUDI MIB MIB HS MIB2 MIB3 MIB3+ 2017 – 2024
Q8 SUV AUDI MIB MIB HS MIB2 MIB3 MIB3+ 2019 – 2024
R8 4S AUDI MIB MIB HS MIB2 MIB3 MIB3+ 2017 – 2024
TT FV/8S AUDI MIB MIB HS MIB2 MIB3 MIB3+ 2015 – 2020

Bentley

Model Generation Configuration Year
Bentayga MIB2 2017 2020+
Continental MIB2 2019 2020+

Porsche

Model Generation Configuration Year
911 992 PCM4 PCM5 2017 – 2024
Boxtster/Cayman 982 PCM4 PCM5 2017 – 2024
Cayenne E3 PCM4 PCM5 2019 – 2024
Macan 95B PCM4 PCM5 2017 – 2024
Panamera 971 PCM4.1 2017 – 2024

Volkswagen

Model Generation Configuration Year
Golf MK7 MK8 VM MIB MIB2 2017 – 2024
GTI MK7 MK8 VM MIB MIB2 2017 – 2024
